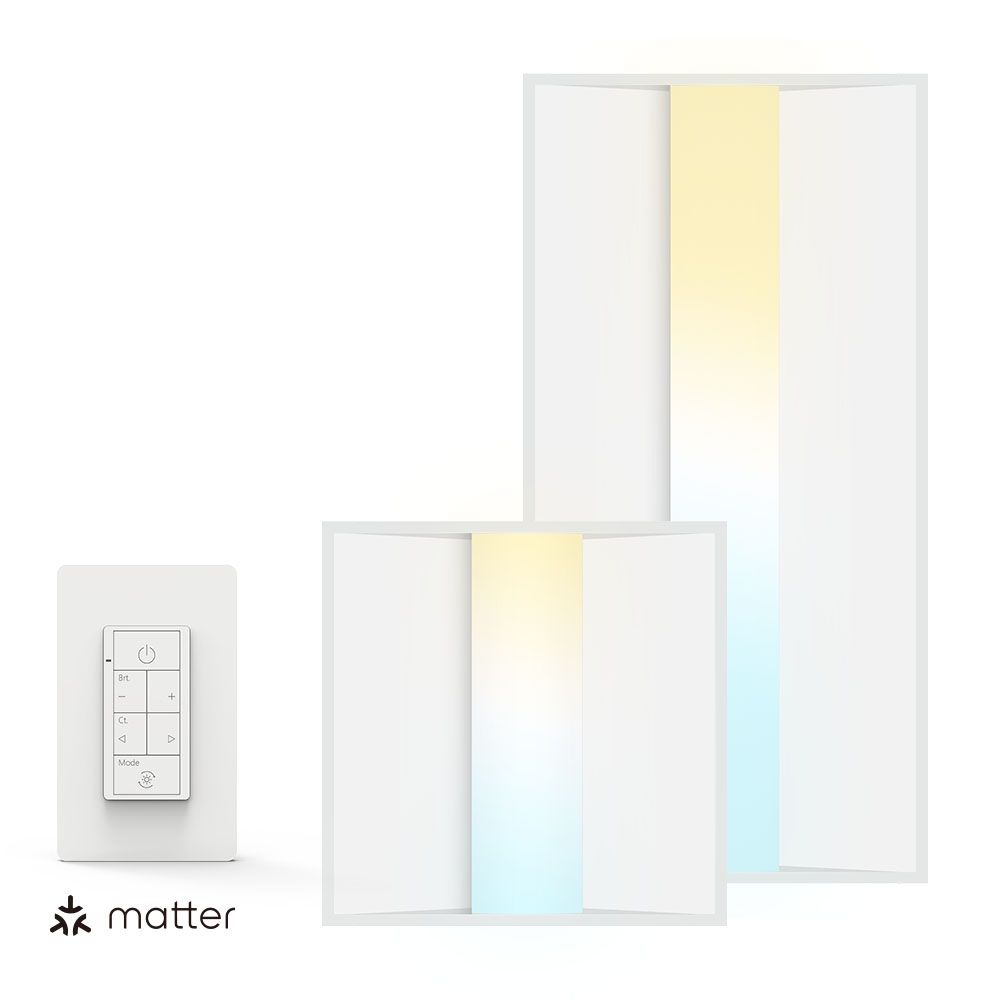

PLC Troffer Light 1’x4’ | 2’x2’ | 2’x4’ | 125lm/W | CCT 2700K-6500K Linear adjustable | Wattage 0%-100% Adjustable


The LED Troffer provides added function and beauty to any residential or commercial area. It can adjust 2700~6500K color temperature by PLC Smart Switch, and you also can switch night light mode to maintain 5% brightness and 2700K color, leisure mode to maintain 50% brightness and 3500K color, work mode to maintain 100% brightness and 5000K. It ideal for creating a romantic or relaxed ambiance. It also has a memory function, so you don’t need to repeatedly set your favorite color temperature. Soft and uniform light.Freely control the light brightness to relieve eye fatigue and save power.Energy-efficient LEDs produce evenly distributed light without any glare, hotspots or flickering. Suitable for different scenarios such as offices, basements, gyms, schools, hospitals, garages, conference rooms, etc.


  • Wattage: 1’x4’:40W | 2’x2’:40W | 2’x4’:50W (0%-100% Adjustable with PLC Smart switch)
  • CCT: 4500K (2700K-6500K smoothly adjustable with PLC Smart switch)
  • Efficiency: 125-130lm/W
  • Input Voltage: 120-277V AC
  • Frequency Range: 50/60Hz
  • CRI: >80
  • PF: >0.9
  • THD: <=20%
  • IP40 Rating
  • 5 Years Warranty

CONSTRUCTION - Constructed of one-piece ribbed unitized housing and corners that interlock, preventing damage to luminaire. All sides and corners are turned in and hemmed, removing sharp edges for safe handling and installation.



ELECTRICAL - Luminaire is built with the highest quality driver that is Universal Voltage(120V-277V), uses long lasting, highly-efficient LED packages.


OPTICAL SYSTEM - Designed to reduce glare and improve light distribution through precision formed.


PLC SMART SWITCH - Control the lamp turn on/off, brightness(0%-100%), color temperature(2700K-6500K) and custom lighting mode.


LISTING - ETL, DLC, FCC, RoHS


WARRANTY - 5 Years Limited Warranty, Rated for 50,000 hours (Refer to your warranty documentation for more information.)

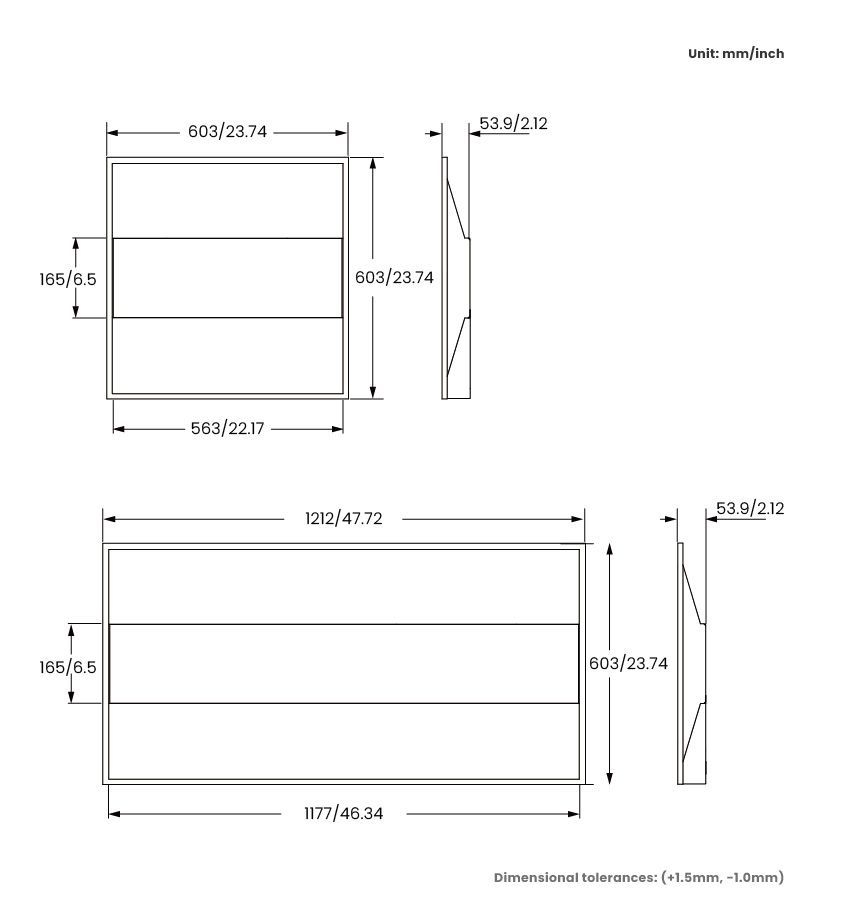

-Size: 1’x4’ (47.6” x 13.78” x 1.97” / 1210mm x 350mm x 50mm) | 2’x2’ (23.82” x 23.82” x 2.17” / 605mm x 605mm x 55mm)

| 2’x4’ (47.6” x 23.82” x 2.17” / 1210mm x 605mm x 55mm)


-Wattage: 1’x4’:40W | 2’x2’:40W | 2’x4’:50W (0%-100% Adjustable with PLC Smart switch)


-CCT: 4500K (2700K-6500K smoothly adjustable with PLC Smart switch)


-Efficiency: 125-130lm/W


-Input Voltage: 120-277V AC


-Frequency Range: 50/60Hz


-CRI: >80


-PF: >0.9


-THD: <=20%


-Lifetime: 50,000 hours


-Lumens: 5000-6250lm


-Beam Angle: 120°


-Certifications: ETL/DLC/RoHs/FCC


-IP Rating: IP 40


-Warranty: 5 Years


PLC Smart Switch-JL-PLC400W-120 | JL-PLC800W-120 | JL-PLC1200W-120

Wiring：Single Pole


Rating: 120-277V AC 50/60Hz


Control: Touch-Tone


Maximum Load: ≤400W | ≤800W | ≤1200W


Wire Wiring: Neutral/Single Live


Dimmensions: 2.76"x4.53"x1.43"


Material: PC(Flame Retrdant Material)


Working Temperature: -20℃~40℃


Spec sheet: LED Troffer Light + PLC    DOWNLOAD


Instruction Manual: JL-TRF+PLC -INSTALLATION     DOWNLOAD


Model Size Voltage Wattage (With PLC Smart Switch) Efficiency Lumens CCT (With PLC Smart Switch) Certifications
JL-TRF14-PLC40W-CCT 1x4 120-277v 40W (0%-100% Adjustable) 125-130lm/W 5000lm 2700K-6500K (Linear adjustable) ETL/DLC
JL-TRF22-PLC40W-CCT 2x2 120-277v 40W (0%-100% Adjustable) 125-130lm/W 5000lm 2700K-6500K (Linear adjustable) ETL/DLC
JL-TRF24-PLC50W-CCT 2x4 120-277v 50W (0%-100% Adjustable) 125-130lm/W 6250lm 2700K-6500K (Linear adjustable) ETL/DLC
