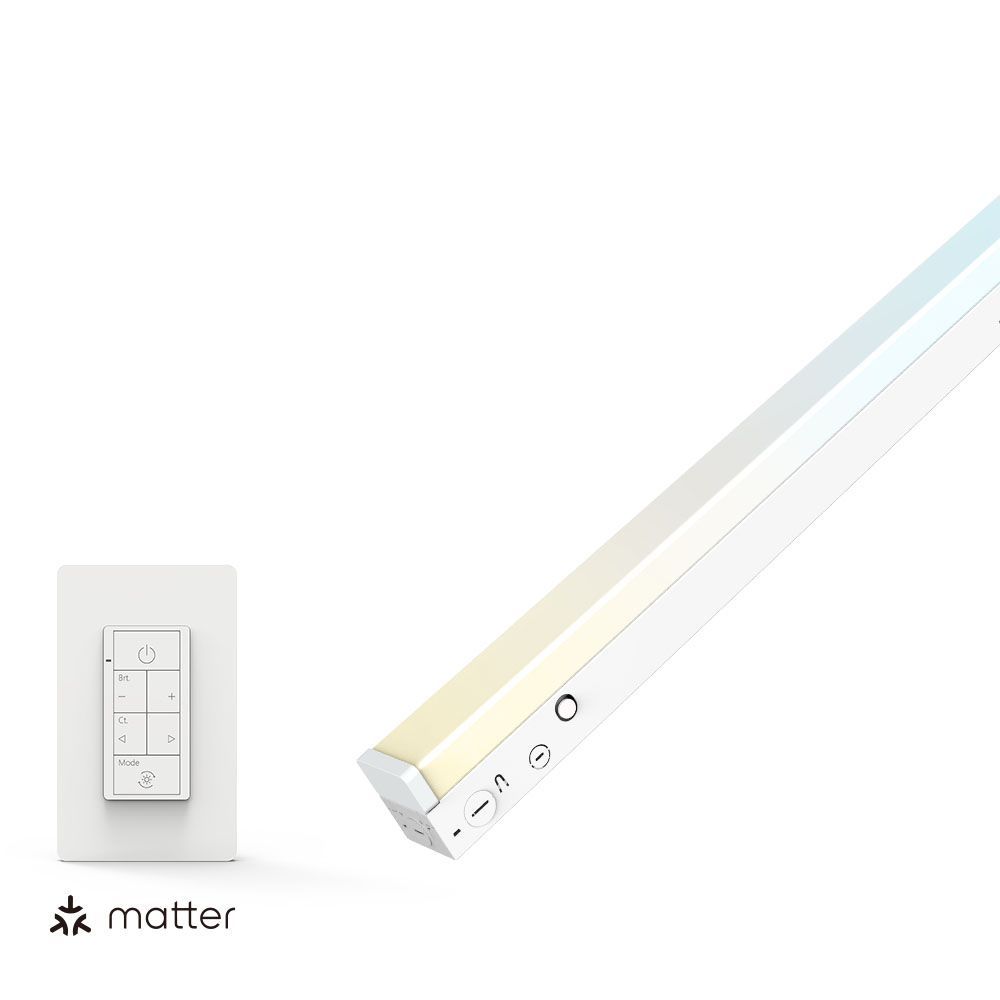

PLC Linear Strip Light | 4ft | 8ft | 130-150lm/W | CCT 2700K-6500K Linear adjustable | Wattage 0%-100% Adjustable


An all-in-1, low-profile, linear and narrow wraparound. Comes with decorative endcaps with integrated linkabillty and a frosted diffuser providing widespread, uniform illumination.



It can adjust 2700~6500K color temperature by PLC Smart Switch, and you also can switch night light mode to maintain 5% brightness and 2700K color, leisure mode to maintain 50% brightness and 3500K color, work mode to maintain 100% brightness and 5000K, by the PLC Smart Switch. It ideal for creating a romantic or relaxed ambiance. It also has a memory function, so you don’t need to repeatedly set your favorite color temperature. Smart led ceiling light fixture is dimmable from 0%~100% Through the PLC Smart Switch.Soft and uniform light.Freely control the light brightness to relieve eye fatigue and save power.



Ideal for many applications including corridors, kitchens, breakrooms, utility work areas and stairways.


  • Wattage: 4FT: 50W | 8FT: 100W (0%-100% Adjustable with PLC Smart switch)
  • CCT: 4500K (2700K-6500K smoothly adjustable with PLC Smart switch)
  • Efficiency: 130-150lm/W
  • Input Voltage: 120-277V AC
  • Frequency Range: 50/60Hz
  • CRI: >80
  • PF: >0.9
  • THD: <=20%
  • 5 Years Warranty

CONSTRUCTION - Metal Housin | White Frosted Cover | Plastic End Caps


ELECTRICAL - Long-life LEDs, coupled with a high-efficiency driver, provide superior illumination for extended service life. Available as 120-277V input.


INSTALLATION - Surface Mounting or V-Hook/Chain Mounting


LINKABLE - The ability to link multiple tube lights together allows you to customize the lighting arrangement to suit your space perfectly, providing uniform lighting across larger areas.


APPLICATIONS - Warehouse/Manufacturing Facilities/Storage/Retail/Aisles.

Suitable for dry and damp indoor locations.

Working temperature -4°F to 113°F (-20°C to 45°C).


PLC SMART SWITCH - Control the lamp turn on/off, brightness(0%-100%),

color temperature(2700K-6500K) and custom lighting mode.


LISTING - ETL, DLC


WARRANTY - 5 Years Limited Warranty, Rated for 50,000 hours.

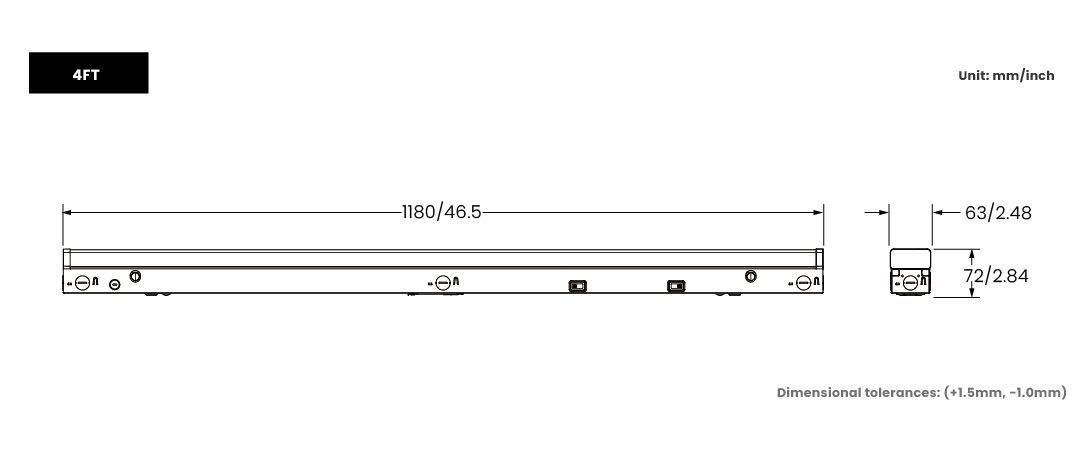

-Size: 4FT(46.5” x 2.48” x 2.84” / 1180mm x 63mm x 72mm) 8FT(93” x 2.48” x 2.84” / 2360mm x 63mm x 72mm)


-Wattage: 4FT:50W | 8FT:100W (0%-100% Adjustable with PLC Smart switch)


-CCT: 4500K (2700K-6500K smoothly adjustable with PLC Smart switch)


-Efficiency: 130-150lm/W


-Lumens: 6500lm/13000lm


-Beam Angle: 180°


-Input Voltage: 120-277V AC


-Frequency Range: 50/60Hz


-CRI: >80


-PF: >0.95


-THD: <=20%


-Lifetime: 50,000 hours


-Certifications: ETL/DLC


-Warranty: 5 Years


-Working Temperature: -4°F to 113°F (-20°C to 45°C)



PLC Smart Switch-JL-PLC400W-120 | JL-PLC800W-120 | JL-PLC1200W-120

Wiring：Single Pole


Rating: 120-277V AC 50/60Hz


Control: Touch-Tone


Maximum Load: ≤400W | ≤800W | ≤1200W


Wire Wiring: Neutral/Single Live


Dimmensions: 2.76"x4.53"x1.43"


Material: PC(Flame Retrdant Material)


Working Temperature: -20℃~40℃


Spec sheet: LED Linear Strip Light + PLC    DOWNLOAD


Instruction Manual: JL-STR+PLC -INSTALLATION     DOWNLOAD

Model Size Voltage Wattage (With PLC Smart Switch) Efficiency Lumens CCT (With PLC Smart Switch) Certifications
JL-STR-4FT-PLC50W-CCT 4FT 120-277v 50W (0%-100% Adjustable) 130lm/W 6500lm 2700K-6500K (Linear adjustable) ETL
JL-STR-8FT-PLC100W-CCT 8FT 120-277v 100W (0%-100% Adjustable) 130lm/W 13000lm 2700K-6500K (Linear adjustable) ETL
