T8 INTEGRATED LED TUBE LIGHT | 2ft/3ft/4ft/8ft | Seamless | Linkable & Plug and Play
The T8 Integrated LED Tube is a premium quality light fixture that’s suitable for different sized areas.
Use the linkable connectors or small connectors to daisy chain multiple units together. Installation is very simple. Use the mounting clips to install as a standalone fixture or suspend from the ceiling.
With its seamless look, strong aluminum housing, and shatterproof PC lens, the T8 Integrated LED Tube is a reliable performer for any environment. Common applications are retail stores, factories, and industrial sectors, farms, sheds and warehouses.
- Length: 2ft 3ft 4ft 8ft
- Wattage-2FT:10W/15W/20W 3FT:15W/22W/30W 4FT: 22W/30W/40W 8FT: 45W/60W/72W
- CCT: 3000k-6500k
- Efficiency: 125lm/W
- Standout feature: linkable
- IP40 Rating
- 5 Years Warranty
CONSTRUCTION
PC + Aluminum | T8 Integrated LED Tubes Seamless
ELECTRICAL
Runs on 120-277V line voltage
LINKABLE
The ability to link multiple tube lights together allows you to customize the lighting arrangement to suit your space perfectly, providing uniform lighting across larger areas.
EASY INSTALLATION
The T8 LED Integrated Tube light doesn't need a ballast fixture, making setup easy. Just connect the provided connector and secure the fixture with the included clips and screws. This simple installation saves on maintenance and costs
ENERGY EFFICIENT
The LED technology used in these tube lights is energy-efficient, helping you reduce energy consumption and lower utility costs while still maintaining exceptional illumination.
LONGEVITY
LED lighting is known for its extended lifespan, reducing the need for frequent replacements and minimizing maintenance efforts.
APPLICATIONS
From residential spaces to commercial establishments, these tube lights find utility in a wide range of settings, including homes, offices, retail stores, garage, workshops, basement and more.
BEAM ANGLE
120 Degree Beam Angle
LISTING
ETL, DLC, FCC
WARRANTY
5 Years Limited Warranty, Rated for 50,000 hours.

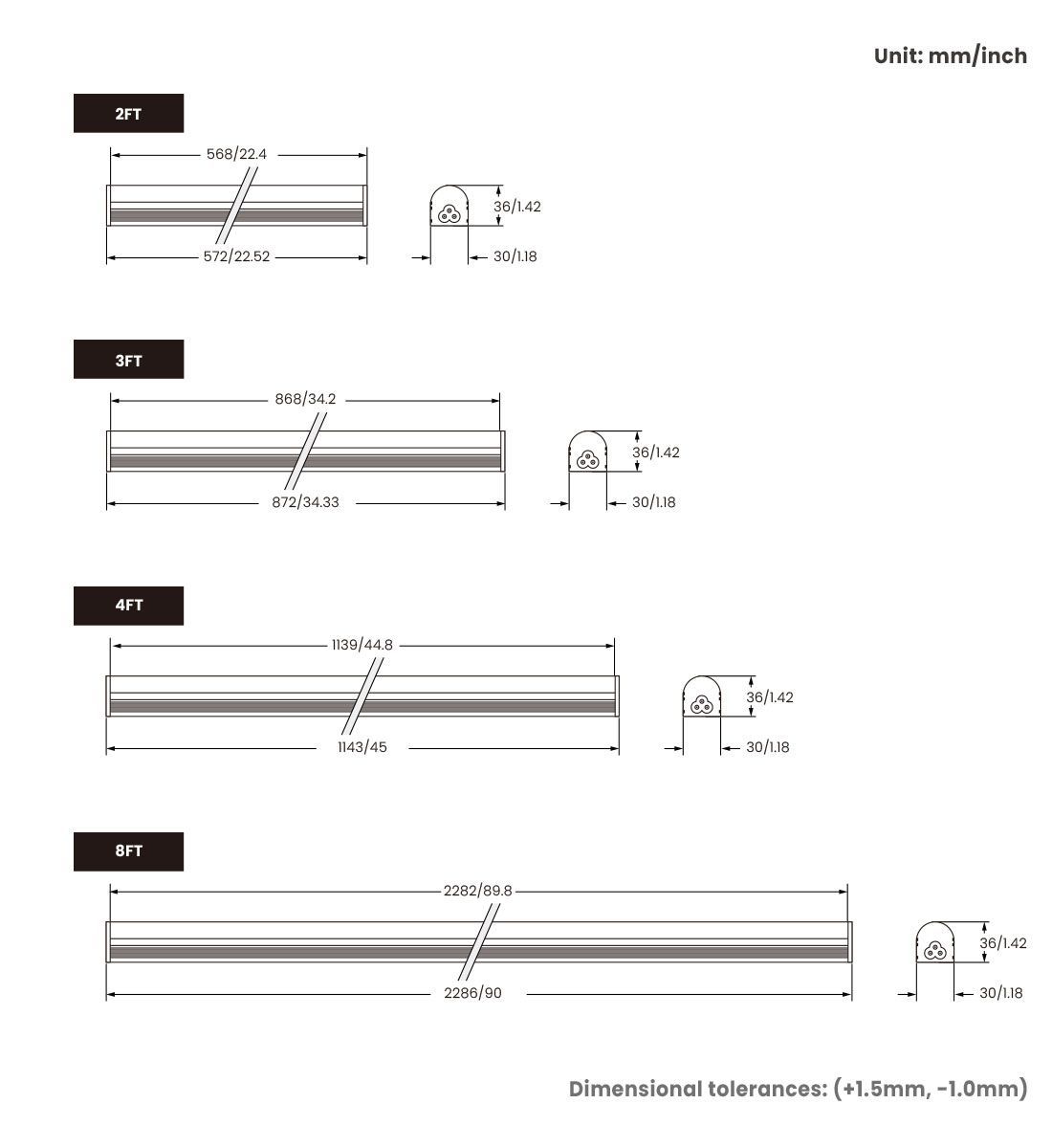

-Size: 2FT(22.52" x 1.18” x 1.42”) 3FT(34.33" x 1.18” x 1.42”) 4FT(44.96” x 1.18” x 1.42”) 8FT(89.92” x 1.18” x 1.42”)
-Wattage: 2FT:10W/15W/20W 3FT:15W/22W/30W 4FT: 22W/30W/40W 8FT: 45W/60W/72W
-Lumens: 1250-9000lm
-CCT: 3000k-6500k
-Efficiency: 125lm/W
-Input Voltage: 120-277V AC
-Frequency Range: 50/60Hz
-Cover: Frosted / Clear
-CRI: >80
-PF: >0.95
-THD: <=20%
-Lifetime: 50,000 hours
-Beam Angle: 120°
-Certifications: ETL/DLC/FCC
-IP Rating: IP 40
-Warranty: 5 Years
-Working Temperature: -20°C to 45°C /-4°F to +113°F
| Model | Size | Voltage | Wattage | Efficiency | Lumens | CCT | Certifications |
|---|---|---|---|---|---|---|---|
| JL-INT-2FT-10W-XXK | 2FT | 120-277v | 10w | 125lm/W | 1250lm | 3000-6500K | ETL |
| JL-INT-2FT-15W-XXK | 2FT | 120-277v | 15w | 125lm/W | 1875lm | 3000-6500K | ETL |
| JL-INT-2FT-20W-XXK | 2FT | 120-277v | 20w | 125lm/W | 2500lm | 3000-6500K | ETL |
| JL-INT-3FT-15W-XXK | 3FT | 120-277v | 15w | 125lm/W | 1875lm | 3000-6500K | ETL |
| JL-INT-3FT-22W-XXK | 3FT | 120-277v | 22w | 125lm/W | 2750lm | 3000-6500K | ETL |
| JL-INT-3FT-30W-XXK | 3FT | 120-277v | 30w | 125lm/W | 3750lm | 3000-6500K | ETL |
| JL-INT-4FT-22W-XXK | 4FT | 120-277v | 22w | 125lm/W | 2750lm | 3000-6500K | ETL/DLC |
| JL-INT-4FT-30W-XXK | 4FT | 120-277v | 30w | 125lm/W | 3750lm | 3000-6500K | ETL/DLC |
| JL-INT-4FT-40W-XXK | 4FT | 120-277v | 40w | 125lm/W | 5000lm | 3000-6500K | ETL/DLC |
| JL-INT-8FT-45W-XXK | 8FT | 120-277v | 45w | 125lm/W | 5625lm | 3000-6500K | ETL/DLC |
| JL-INT-8FT-60W-XXK | 8FT | 120-277v | 60w | 125lm/W | 7500lm | 3000-6500K | ETL/DLC |
| JL-INT-8FT-72W-XXK | 8FT | 120-277v | 72w | 125lm/W | 9000lm | 3000-6500K | ETL/DLC |
