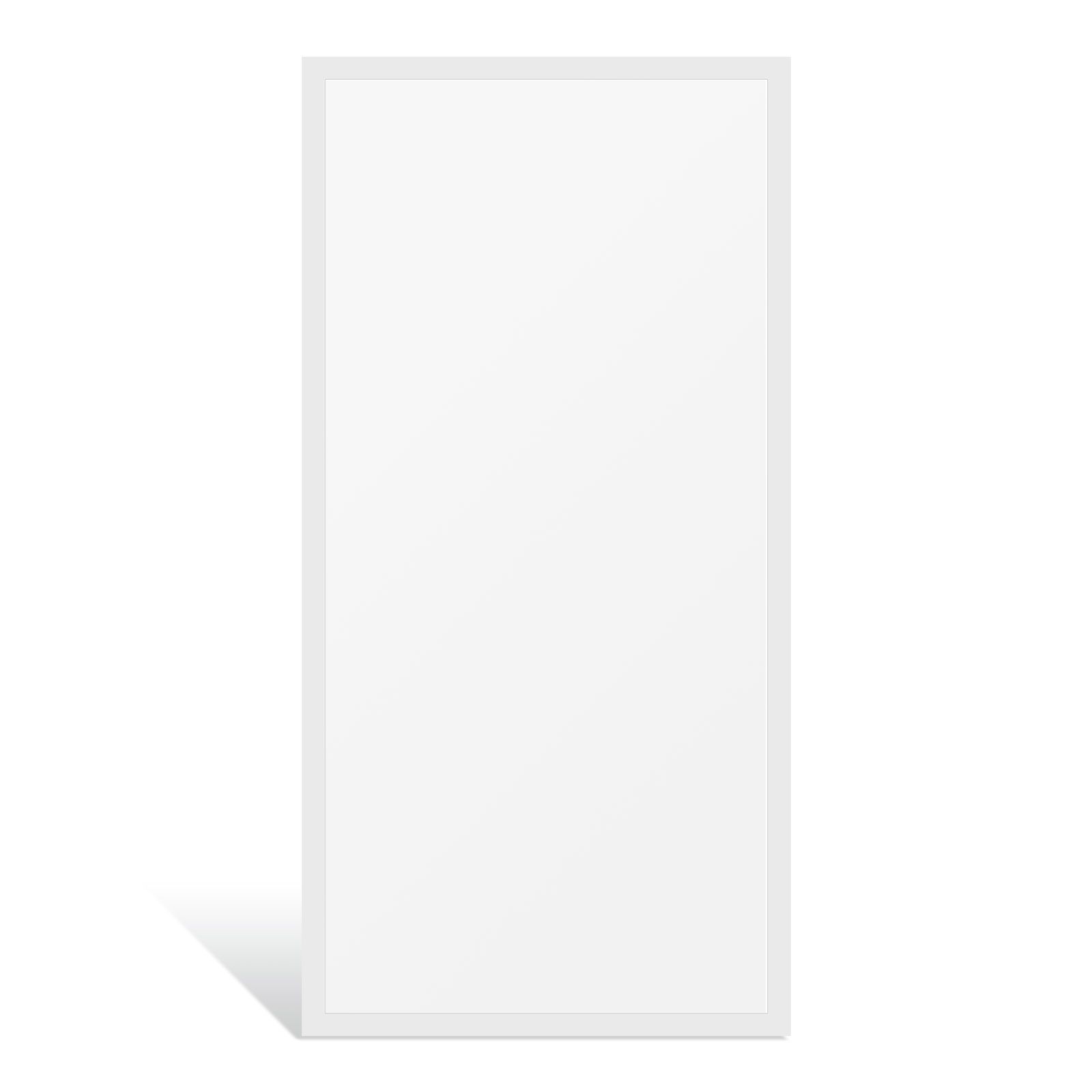

2’ x 4’ Back-lit LED Panel light | Wattage Selectable | CCT Selectable | 125lm/W | 0–10V Dimming
This LED Panel light with back-lit design and specialized optics to create uniform and anti-glare light.This Panel light features the classic lighting outlook but equipped with the most LED technology to last long time. Easy mounting in standard size T-bar ceilings. Standard ceiling tiles can be mounted onto the center cavity of the fixture. This newest LED Frame light provides high levels of energy saving LED diffuse light for use in private offices, open office areas, upscale retail applications, public circulation areas, and classrooms.
- 5Wattage - M50W: 25W/30W/35W/40W/50W（Selectable）
- 5Wattage - M72W: 30W/40W/50W/60W/72W（Selectable）
- Lumens: 1950-5000lm
- 5CCT: 3500K/4000K/5000K/5700K/6500K（Selectable）
- Efficiency: 125-130lm/W
- Input Voltage: 120-277V AC
- Frequency Range: 50/60Hz
- CRI: >80
- PF: >0.9
- THD: <=20%
- Dimming: 0-10V DC
- IP40 Rating
- 5 Years Warranty
CONSTRUCTION - Durable solid frame, prefabricated paint with matte white finished. Slim profile design. Integrated T-Bar mounting clips built in onto the fixture. Easy installation.
ELECTRICAL - Luminaire is built with the highest quality driver that is Universal Voltage(120V-277V), uses long lasting, highly-efficient LED packages.
DRIVER - Driver is fixed on the back of the panel or side to prevent mis-handling duringshipment.
OPTICAL SYSTEM - Back-lit optics produces uniform light output, diffuser lens reduces glare andimprove overall energy efficiency.
DIMMING - Continuous dimming (0-10V) comes standard.
ENERGY SAVINGS - Over 50% energy savings than traditionally fluorescent fixtures, low heat productions requires less maintenance and operation cost.
LISTING - ETL, DLC, FCC, RoHS, CE
WARRANTY - 5 Years Limited Warranty, Rated for 50,000 hours (Refer to your warranty documentation for more information.)

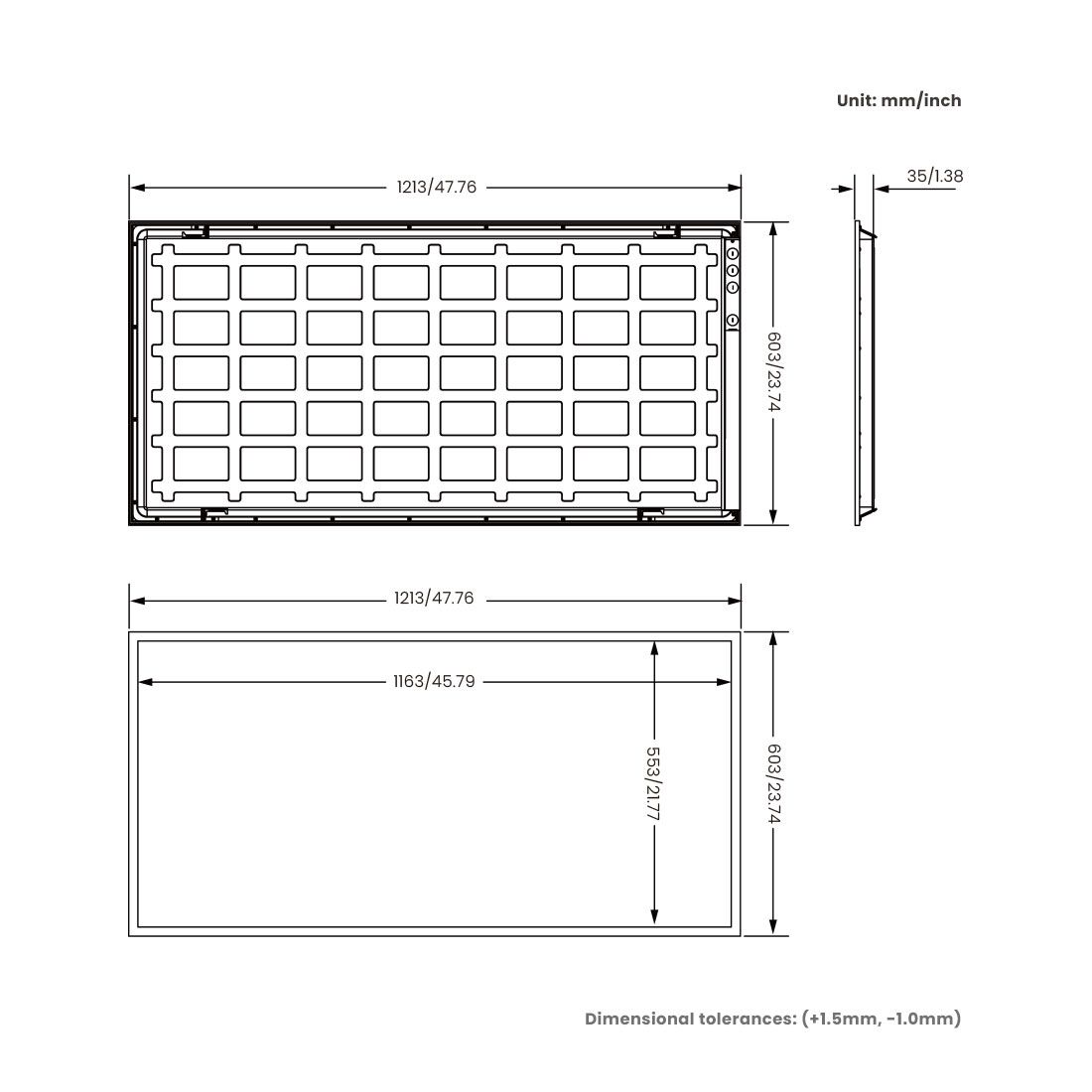

-Size: 2’x4’ (47.76” x 23.74” x 1.38” / 1213mm x 603mm x 35mm)
-5Wattage Selectable: M50W-25W/30W/35W/40W/50W or M72W - 30W/40W/50W/60W/72W
-5CCT Selectable: 3500K/4000K/5000K/5700K/6500K
-Efficiency: 125-130lm/W
-Input Voltage: 120-277V AC
-Frequency Range: 50/60Hz
-CRI: >80
-PF: >0.9
-THD: <=20%
-Dimming: 0-10V DC
-Lifetime: 50,000 hours
-Lumens: 3250-6250lm or 3900-9000lm
-Beam Angle: 120°
-Certifications: ETL/DLC/RoHs/FCC/CE
| Model | Size | Voltage | Wattage | Efficiency | Lumens | CCT | Dimming |
|---|---|---|---|---|---|---|---|
| JL-BPL24-M50W-CCT | 2x4 | 120-277v | 25w 30W 35W 40W 50W (Selectable) | 125-130lm/W | 3250lm 3900lm 4550lm 5080lm 6250lm | 3500K 4000K 5000K 5700K 6500K (Selectable) | 0-10V |
| JL-BPL24-M72W-CCT | 2x4 | 120-277v | 30w 40W 50W 60W 72W (Selectable) | 125-130lm/W | 3900lm 5160lm 6350lm 7560lm 9000lm | 3500K 4000K 5000K 5700K 6500K (Selectable) | 0-10V |
