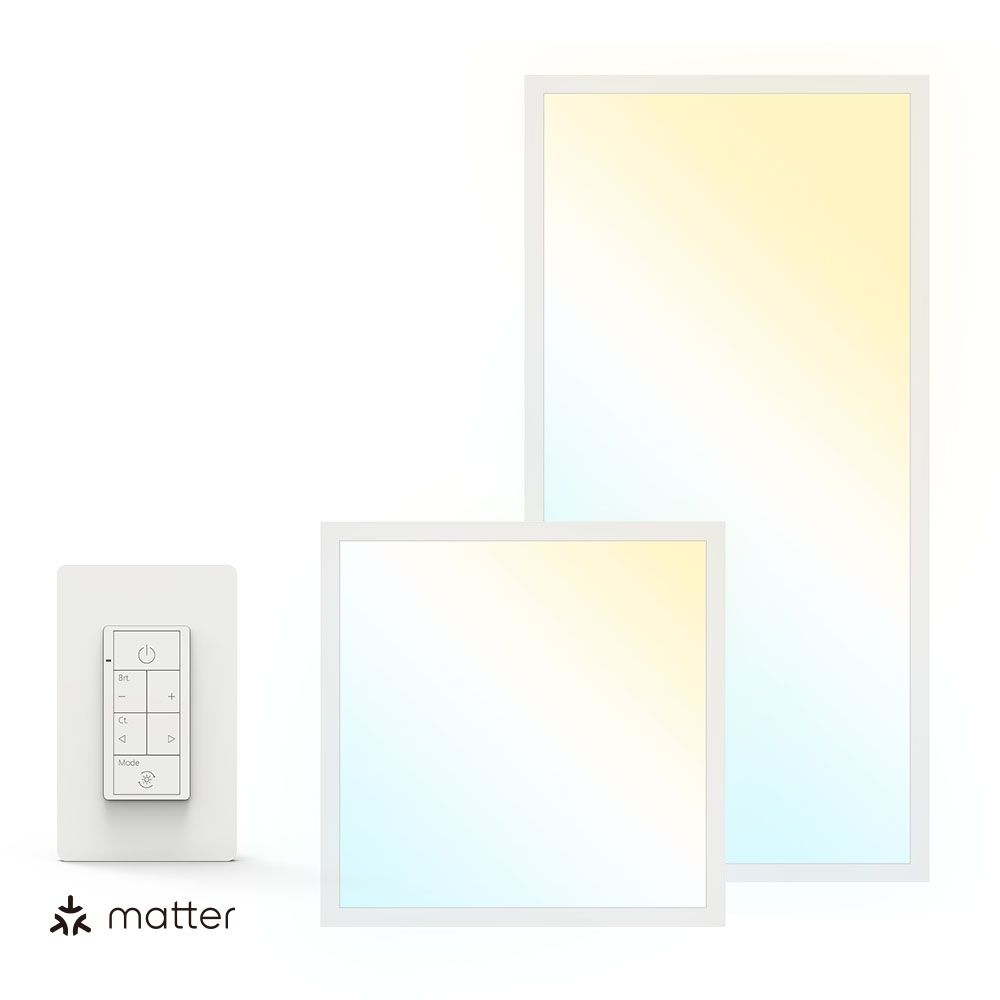

PLC Back-lit LED Panel light | 1’x4’ | 2’x2’ | 2’x4’ | 125lm/W | CCT 2700K-6500K Linear adjustable | Wattage 0%-100% Adjustable


This LED Panel light with back-lit is designed with high-efficiency LED chips which can provide high-quality light and reduce 85% of the electricity bill. It can adjust 2700~6500K color temperature by PLC Smart Switch, and you also can switch night light mode to maintain 5% brightness and 2700K color, leisure mode to maintain 50% brightness and 3500K color, work mode to maintain 100% brightness and 5000K, by the PLC Smart Switch. It ideal for creating a romantic or relaxed ambiance. It also has a memory function, so you don’t need to repeatedly set your favorite color temperature. Smart led ceiling light fixture is dimmable from 0%~100% Through the PLC Smart Switch.Soft and uniform light.Freely control the light brightness to relieve eye fatigue and save power. Suitable for different scenarios such as offices, basements, gyms, schools, hospitals, garages, conference rooms, etc.



  • Wattage: 1’x4’:40W | 2’x2’:40W | 2’x4’:72W (0%-100% Adjustable with PLC Smart switch)
  • CCT: 4500K (2700K-6500K smoothly adjustable with PLC Smart switch)
  • Efficiency: 125-130lm/W
  • Input Voltage: 120-277V AC
  • Frequency Range: 50/60Hz
  • CRI: >80
  • PF: >0.9
  • THD: <=20%
  • IP40 Rating
  • 5 Years Warranty

CONSTRUCTION - Durable solid frame, prefabricated paint with matte white finished. Slim profile design. Integrated T-Bar mounting clips built in onto the fixture. Easy installation.


ELECTRICAL - Luminaire is built with the highest quality driver that is Universal Voltage(120V-277V), uses long lasting, highly-efficient LED packages.


DRIVER - Driver is fixed on the back of the panel or side to prevent mis-handling duringshipment.


OPTICAL SYSTEM - Back-lit optics produces uniform light output, diffuser lens reduces glare and improve overall energy efficiency.


ENERGY SAVINGS - Over 50% energy savings than traditionally fluorescent fixtures, low heat productions requires less maintenance and operation cost.


PLC SMART SWITCH - Control the lamp turn on/off, brightness(0%-100%), color temperature(2700K-6500K) and custom lighting mode.


LISTING - ETL, DLC, FCC, RoHS, CE


WARRANTY - 5 Years Limited Warranty, Rated for 50,000 hours (Refer to your warranty documentation for more information.)

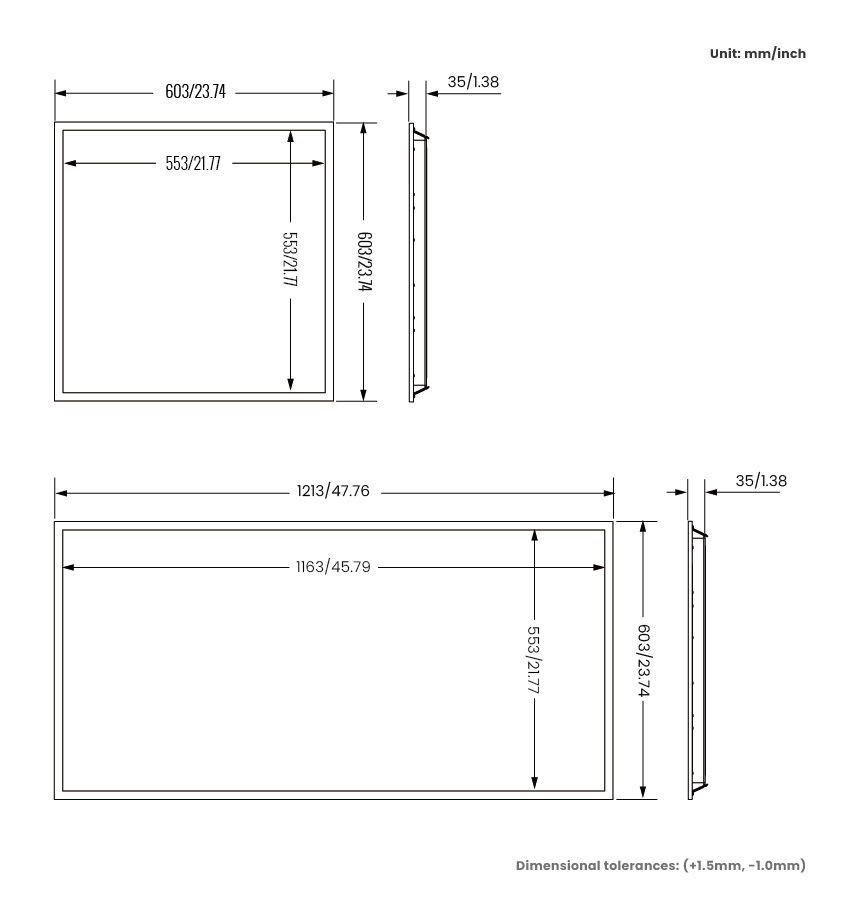

-Size:  1’x4’ (47.76” x 11.93” x 1.38” / 1213mm x 303mm x 35mm) |  2’x2’ (23.74” x 23.74” x 1.38” / 603mm x 603mm x 35mm) |  2’x4’ (47.76” x 23.74” x 1.38” / 1213mm x 603mm x 35mm)


-Wattage:  1’x4’:40W | 2’x2’:40W | 2’x4’:72W (0%-100% Adjustable with PLC Smart switch)


-CCT: 4500K (2700K-6500K smoothly adjustable with PLC Smart switch)


-Efficiency: 125-130lm/W


-Input Voltage: 120-277V AC


-Frequency Range: 50/60Hz


-CRI: >80


-PF: >0.9


-THD: <=20%


-Lifetime: 50,000 hours


-Lumens: 5000-9000lm


-Beam Angle: 120°


-Certifications: ETL/DLC/RoHs/FCC/CE



PLC Smart Switch-JL-PLC400W-120 | JL-PLC800W-120 | JL-PLC1200W-120

Wiring：Single Pole


Rating: 120-277V AC 50/60Hz


Control: Touch-Tone


Maximum Load: ≤400W | ≤800W | ≤1200W



Wire Wiring: Neutral/Single Live


Dimmensions: 2.76"x4.53"x1.43"


Material: PC(Flame Retrdant Material)


Working Temperature: -20℃~40℃

Spec sheet: Back-Lit LED Panel Light + PLC    DOWNLOAD


Instruction Manual: JL-BPL+PLC -INSTALLATION     DOWNLOAD


Model Size Voltage Wattage (With PLC Smart Switch) Efficiency Lumens CCT (With PLC Smart Switch) Certifications
JL-BPL14-PLC40W-CCT 1x4 120-277v 40W (0%-100% Adjustable) 125-130lm/W 5000lm 2700K-6500K (Linear adjustable) ETL/DLC
JL-BPL22-PLC40W-CCT 2x2 120-277v 40W (0%-100% Adjustable) 125-130lm/W 5000lm 2700K-6500K (Linear adjustable) ETL/DLC
JL-BPL24-PLC72W-CCT 2x4 120-277v 72W (0%-100% Adjustable) 125-130lm/W 9000lm 2700K-6500K (Linear adjustable) ETL/DLC
