2x4 LED Troffer Light |
Wattage Selectable | CCT Selectable | 125lm/W | 25-50W | 0-10V Dimming

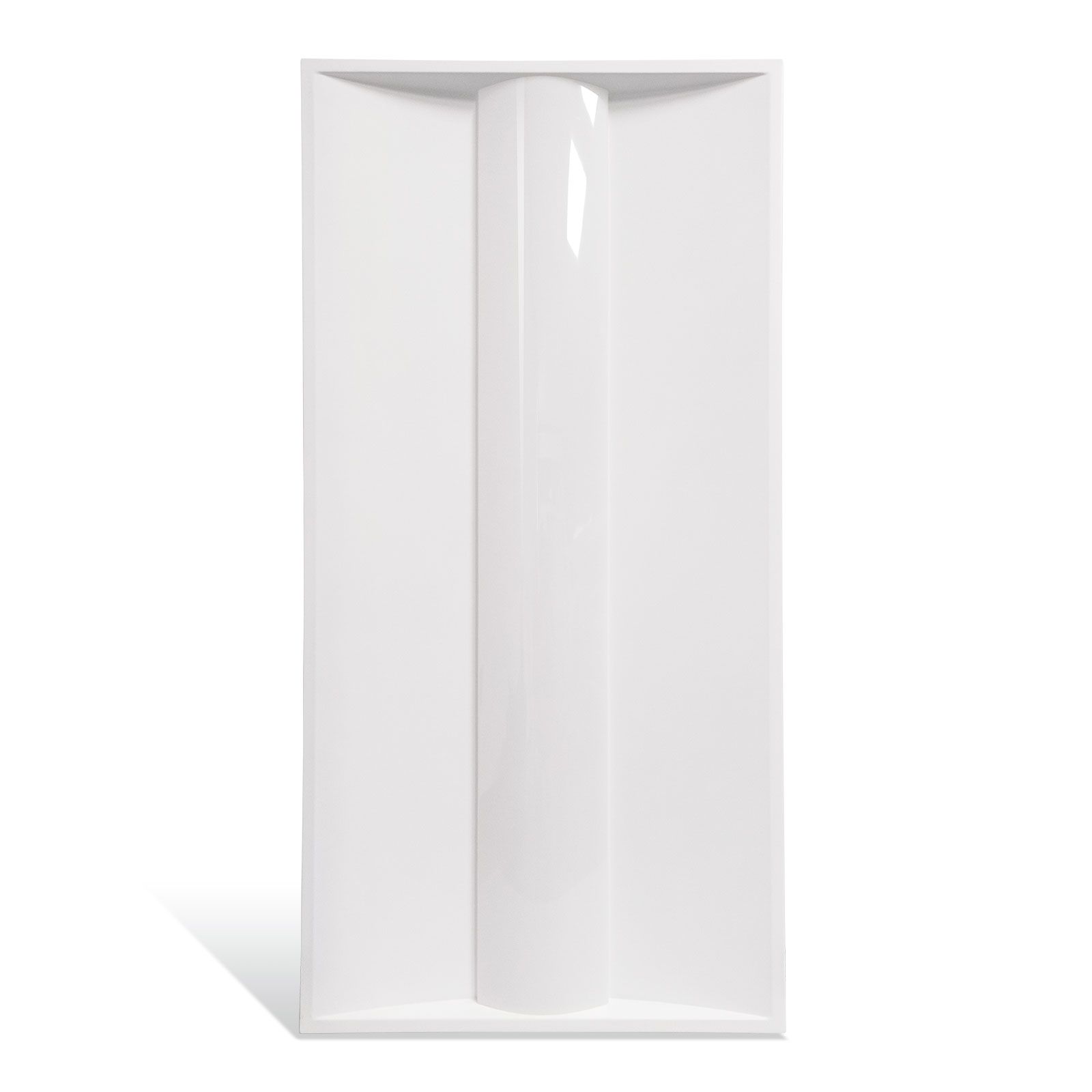

The LED Troffer provides added function and beauty to any residential or commercial area. With selectable color temperature feature(3500K/4000K/5000K/5700K/6500K) and the 0-10 Volt dimming feature , making it easy to craft a unique space whether it be for a school, office space, or commercial space. An ultra slim, backlit design with frosted acrylic lens and a white frame add beauty and modern style, and energy-efficient LEDs produce evenly distributed light without any glare, hotspots or flickering.
- Wattage: 25W/30W/35W/40W/50W（Selectable）
- Lumens: 3250-6250lm
- CCT: 3500K/4000K/5000K/5700K/6500K（Selectable）
- Efficiency: 125-130lm/W
- Input Voltage: 120-277V AC
- Frequency Range: 50/60Hz
- CRI: >80
- PF: >0.9
- THD: <=20%
- Dimming: 0-10V DC
- IP40 Rating
- 5 Years Warranty
CONSTRUCTION - Constructed of one-piece ribbed unitized housing and corners that interlock, preventing damage to luminaire. All sides and corners are turned in and hemmed, removing sharp edges for safe handling and installation.
ELECTRICAL - Luminaire is built with the highest quality driver that is Universal Voltage(120V-277V), uses long lasting, highly-efficient LED packages.
OPTICAL SYSTEM - Designed to reduce glare and improve light distribution through precision formed.
DIMMING - Continuous dimming (0-10V) comes standard.
LISTING - ETL, DLC, FCC, RoHS
WARRANTY - 5 Years Limited Warranty, Rated for 50,000 hours (Refer to your warranty documentation for more information.)

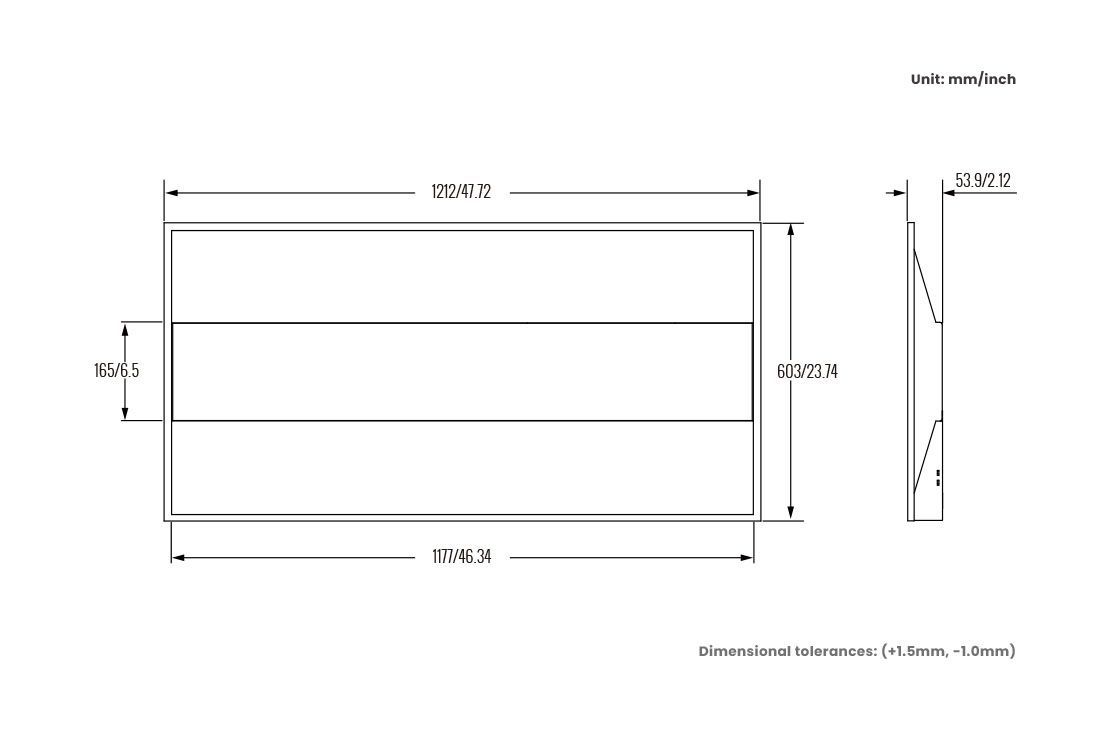

-Size: 2’x4’ (47.72” x 23.74” x 2.12” / 1212mm x 603mm x 53.9mm)
-5Wattage Selectable: 25W/30W/35W/40W/50W
-5CCT Selectable: 3500K/4000K/5000K/5700K/6500K
-Efficiency: 125-130lm/W
-Input Voltage: 120-277V AC
-Frequency Range: 50/60Hz
-CRI: >80
-PF: >0.9
-THD: <=20%
-Dimming: 0-10V DC
-Lifetime: 50,000 hours
-Lumens: 3250-6250lm
-Beam Angle: 120°
-Certifications: ETL/DLC/RoHs/FCC
| Model | Size | Voltage | Wattage | Efficiency | Lumens | CCT | Dimming |
|---|---|---|---|---|---|---|---|
| JL-TRF24-M50W-CCT | 2x4 | 120-277v | 25w 30W 35W 40W 50W (Selectable) | 125-130lm/W | 3250lm 3900lm 4550lm 5080lm 6250lm | 3500K 4000K 5000K 5700K 6500K (Selectable) | 0-10V |
