PLC Recessed Slim Downlight | 4"/6" | 82lm/W | Smooth adjustable CCT 2700K-6500K | Wattage 5%-100% | Control by PLC Smart Switch (Matter)

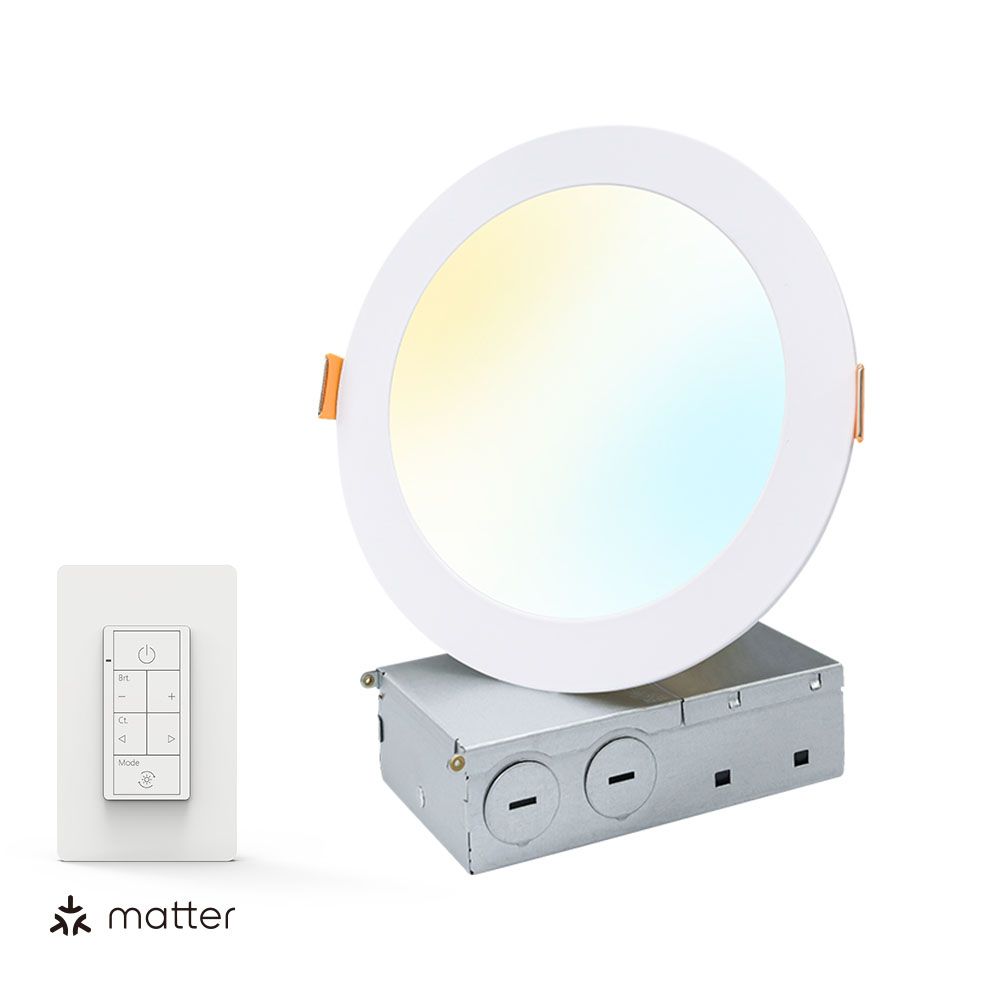

PLC Recessed Slim Downlight + PLC Smart Switch (Matter)
The PLC Smart Switch(Matter) is not required Neutral wire . Compatible with both new or older properties, not modification to existing home wiring.
Matter-certified-can work together and are compatible with most major smart home platforms.
Voice Control-Hands-free voice control via Alexa, Siri, Google Assistant and other voice assistants.
Remote App Control-Control from remotely with the app, such as Amazon Alexa, Apple Home, Google Home, and SmartThings.
Scheduling & Timer-Set lighting schedules to auto-launch your preferred scenes for effortless daily comfort.
Local Control-Ultra-easy panel suitable for all ages; easily adjust brightness, color temperature and scene modes.
- Wattage: 4":9W | 6":12W (5-100% Smooth adjustable)
- CCT: 2700K-6500K Smooth adjustable
- Efficiency: 82lm/W
- Input Voltage: 108V-132V AC
- Frequency Range: 50/60Hz
- CRI: >80
- PF: >0.9
- THD: <=20%
- 5 Years Warranty
CONSTRUCTION
Durable solid frame, prefabricated paint with matte white finished. Slim profile design.
ELECTRICAL
Available as 108V-132V AC input.
PLC Smart Switch(Matter)-Applicable
Matter-Certified
Regardless of brand,all Matter-certified devices can work together. Matter devices can be controlled by most major smart home platforms.
Support Matter over Wi-Fi, seamlessly integrating with Alexa, Google Home, and Apple Home etc for effortless voice, app, and Schedules automated control.
Easy Control
Turn on/off,
Smooth Dimming(5%-100%),
Smooth Adjustable Color Temperature(2700K-6500K)
Three Scene Mode-Work mode/Leisure mode/Night light mode
(Can be changed indeed)
Simple Installation
Connect the provided Junction Box to the light using male/female cable and use spring clip to fix it on the ceiling, hassle free, install in seconds.
APPLICATIONS
The lights apply widely in basements, Kitchens, Hallways, bedrooms, bathrooms and so on.
LISTING
ETL
-Size: 4” | 6"
-Wattage: 4”: 9W | 6”: 12W (5%-100% smooth adjustable with PLC Smart Switch(Matter))
-CCT: 4500K (2700K-6500K smooth adjustable with PLC Smart Switch(Matter))
-Efficiency: 82lm/W
-Input Voltage: 108V-132V AC
-Frequency Range: 50/60Hz
-CRI: >80
-PF: >0.9
-THD: <=20%
-Lifetime: 50,000 hours
-Lumens: 4”:738lm | 6”: 984lm
-Base Type: Spring Install
-Certifications: ETL
-Rating: Suitable for wet location
-Warranty: 5 Years
-Working Temperature: -4°F to 113°F (-20°C to 45°C)
PLC Smart Switch(Matter) 7z120-F361WTD1 | 7z120-F381WTD1
Wiring：Single Pole
Rating: 120-277V AC 50/60Hz
Control: Touch-Tone | Voice Control | Remote App Control | Scheduling & Timer
Maximum Load: ≤600W/5.1A | ≤800W/6.8A
Wire Wiring: Single Live or Neutral
Dimmensions: 2.94"x4.69"x1.63"
Material: PC(Flame Retrdant Material)
Working Temperature: -20℃~40℃
| Model | Size | Voltage | Wattage (With PLC Smart Switch) | Efficiency | Lumens | CCT (With PLC Smart Switch) | Certifications |
|---|---|---|---|---|---|---|---|
| JL-4EB-PLC09-SRCT | 4 inch | 108V-132V | 9W(5%-100% Adjustable) | 82lm/W | 738lm | 2700K-6500K (Smooth Adjustable) | ETL |
| JL-6EB-PLC12-SRCT | 6 inch | 108V-132V | 12W(5%-100% Adjustable) | 82lm/W | 984lm | 2700K-6500K (Smooth Adjustable) | ETL |
