PLC Recessed DownLight | 4"/6" | 90lm/W | Smooth adjustable CCT 2700K-6500K Wattage 5%-100% | Control by PLC Smart Switch(Matter)
PLC Recessed Downlight + PLC Smart Switch(Matter)
The PLC Smart Switch(Matter) is not required Neutral wire . Compatible with both new or older properties, not modification to existing home wiring.
Matter-certified-can work together and are compatible with most major smart home platforms.
Voice Control-Hands-free voice control via Alexa, Siri, Google Assistant and other voice assistants.
Remote App Control-Control from remotely with the app, such as Amazon Alexa, Apple Home, Google Home, and SmartThings.
Scheduling & Timer-Set lighting schedules to auto-launch your preferred scenes for effortless daily comfort.
Local Control-Ultra-easy panel suitable for all ages; easily adjust brightness, color temperature and scene modes.
- Wattage: 4":10W | 6": 15W (5-100% Smooth adjustable)
- CCT: 2700K-6500K Smooth adjustable
- Efficiency: 90lm/W
- Input Voltage: 120-277V AC
- Frequency Range: 50/60Hz
- CRI: >90
- PF: >0.9
- THD: <=20%
- 5 Years Warranty
CONSTRUCTION
Connect the Jbox to the cable; Use spring clip to fix it on the ceiling. Hassle-free, the installation can be completed in minutes.
ELECTRICAL
Available as 120-277V input.
PLC Smart Switch(Matter)-Applicable
Matter-Certified
Regardless of brand,all Matter-certified devices can work together. Matter devices can be controlled by most major smart home platforms.
Support Matter over Wi-Fi, seamlessly integrating with Alexa, Google Home, and Apple Home etc for effortless voice, app, and Schedules automated control.
Easy Control
Turn on/off,
Smooth Dimming(5%-100%),
Smooth Adjustable Color Temperature(2700K-6500K)
Three Scene Mode-Work mode/Leisure mode/Night light mode(Can be changed indeed)
APPLICATIONS
The lights apply widely in basements, Kitchens, Hallways, bedrooms, bathrooms and so on.
LISTING
ETL

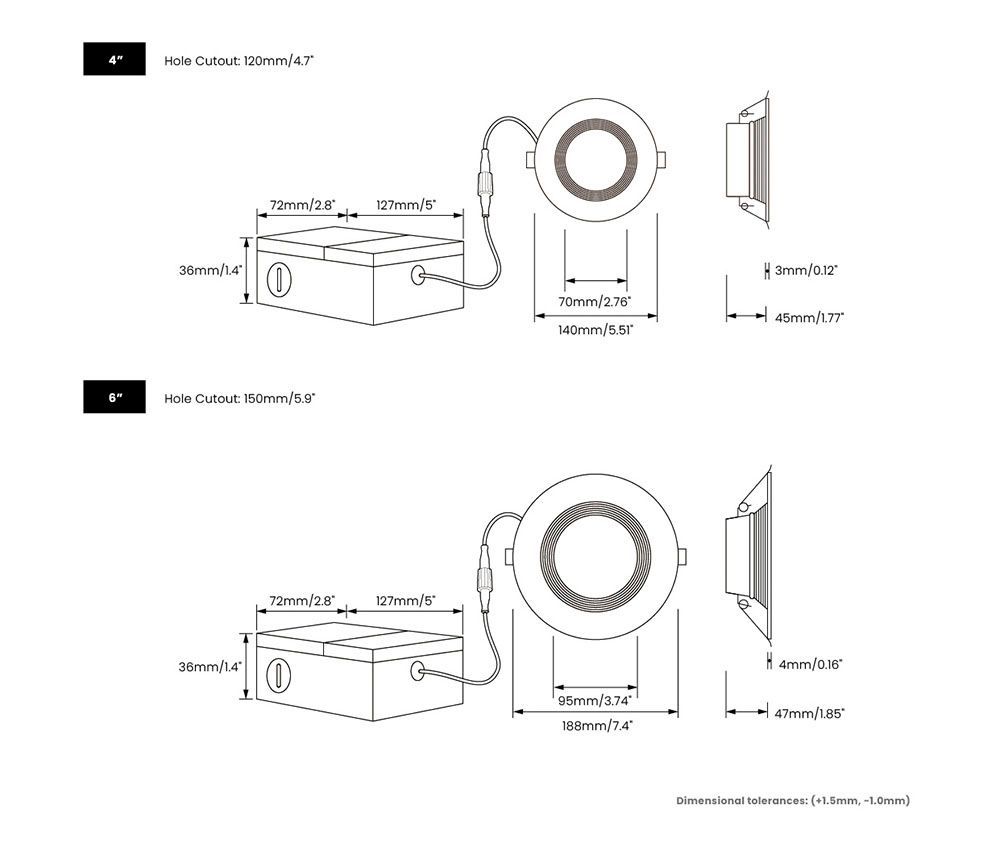

-Size: 4” | 6"
-Wattage: 4”: 10W | 6”: 15W (5%-100% smooth adjustable with PLC Smart Switch(Matter))
-CCT: 4500K (2700K-6500K smooth adjustable with PLC Smart Switch(Matter))
-Efficiency: 90lm/W
-Input Voltage: 120-277V AC
-Frequency Range: 50/60Hz
-CRI: >90
-PF: >0.9
-THD: <=20%
-Lifetime: 50,000 hours
-Lumens: 4”: 900lm | 6”: 1350lm
-Base Type: Spring Install
-Certifications: ETL
-Rating: Suitable for wet location
-Warranty: 5 Years
-Working Temperature: -4°F to 113°F (-20°C to 45°C)
PLC Smart Switch(Matter)-7z120-F361WTD1 | 7z120-F381WTD1
Wiring：Single Pole
Rating: 120-277V AC 50/60Hz
Control: Touch-Tone | Voice Control | Remote App Control | Scheduling & Timer
Maximum Load: ≤600W/5.1A | ≤800W/6.8A
Wire Wiring: Single Live or Neutral
Dimmensions: 2.94"x4.69"x1.63"
Material: PC(Flame Retrdant Material)
Working Temperature: -20℃~40℃
| Model | Size | Voltage | Wattage (With PLC Smart Switch) | Efficiency | Lumens | CCT (With PLC Smart Switch) | Certifications |
|---|---|---|---|---|---|---|---|
| JL-4EB-PLC10-LRCT | 4 inch | 120-277v | 10W(5%-100% Adjustable) | 90lm/W | 900lm | 2700K-6500K (Smooth Adjustable) | ETL |
| JL-DL4-PLC15W-CCT | 6 inch | 120-277v | 15W(5%-100% Adjustable) | 90lm/W | 1350lm | 2700K-6500K (Smooth Adjustable) | ETL |
